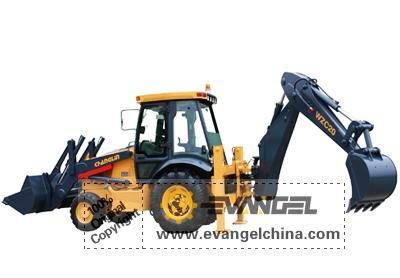

WZC20 Backhoe Loader

WZC20 Backhoe Loader



Description of Backhoe Loader:
The backhoe loader is a kind of construction machinery/construction equipment which consist of a tractor with a bucket in front and a backhoe on the back . Backhoe loaders are very common and can be used for a wide variety of tasks: construction, light transportation of building materials, powering building equipment, digging holes/excavating, landscaping, breaking asphalt, and paving roads.
Features of Backhoe Loader WZC20:
1. Equipped with reliable genuine Cummins engine
2. 4 forward & 4 reverse synchromesh mechanical shift transmission
3. Full
closed ROP/FOPS Cab with more space, increases comfort and visibility
5. 4 wheel driving and CARRARO wet-type rear axle with multi-disc brake & CARRARO front axle
5. Multi-purpose 4 in. 1 bucket has extended application range including loading, scraping, shoving, blade, clamping, paving and lifting.
6. The bucket is controlled through electrical- hydraulic mode.
7. Adopted Pilot valve controlling loader and backhoe valve, easy and flexible operation.
8. Extendible dipper upgrades productivity by reducing the number of travel movements.
9. The mechanical quick coupler attachment is available.
Applications of Backhoe Loader WZC20:
The backhoe loaders’ versatility and compact size makes them one of the most popular construction machinery/construction equipment. These backhoe loaders are widely used for larger projects such as building a house, fixing city roads, mining, etc.
Specifications of Backhoe Loader WZC20:

Overall Dimension

1

Overall length(with bucket on ground)

5840(mm)(Standard bucket)
5800(mm)(Four in one bucket )

2

Overall width(at stabilizer )

2240mm)

3

Width (to outside tyre)

2057(mm)

4

Width of load Bucket

2313(mm)(Standard bucket) 2100(mm)( Four in one bucket)

5

Height of cab

2720 (mm)

6

Max. operating height of digging boom

3548 (mm)

7

Wheelbase

2155.5(mm)

8

Back wheel Tread

1557(mm)

9

Fore wheel Tread

1714(mm)

10

Min. ground clearance

355(mm) for 2WD 275(mm) for 4WD

11

Traveling speed(Km/h)4 forward and 4 reverse

(1) gear forward/reverse

5.8/7.0

(2) gear forward/reverse

10.5/12.6

(3) gear forward/reverse

20.1/24.3

(4) gear forward/reverse

40.2/48.6

Main Loading Technical Specification

1

Rated load

1700(Kg(Standard bucket) 1500(Kg)(Four in one bucket)

2

Operating weight

7800 Kg(Standard bucket) 8200 Kg

3

Lifting capability to full height

>2500 Kg

4

Capacity of load bucket

1.0(m3)(Standard bucket)
0.9(m3)( Four in one bucket)

5

Max. breakout force

>40kN

6

Max. dump clearance

2611(m(Standard bucket) 2550(mm)(Four in one bucket )

7

Max. Dump reach

726(mm)(Standard bucket) 744(mm)

8

Dumping angle at full height

43.5º(Standard bucket) 45.5º(Four in one bucket)

9

tilting angle of bucket

On ground position

40.20

In the transportation position

43.50

10

Max. digging depth(with bucket bottom horizontal)

191mm

11

Min. turning radius

(1) Outside of bucket

5280(mm) for 2WD 5670(mm) for 4WD

(2) Center of front wheel

3795 (mm) for 2WD 4300(mm) for 4WD

12

Lifting time of loading bucket

≤5.1(sec.)

13

Lowering time of loading bucket

≤4.9(sec.)

14

Dumping time

≤0.9(sec.)

Main Digging Technical Specification

1

Rated digging bucket capacity

0.2(m3)

2

Max. digging depth

4365(mm)

3

Max. digging force

>56.6+10kN

4

Max. digging radius

5390(mm)

5

Max. dumping height

3510(mm)

6

Central offset

550mm

7

Swing angle

1800

8

Max. rollback angle of digging bucket

2010

Diesel engine

1

Model

Cummins 4BT4.5-C99

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

74 kW / 99HP

4

Rated speed

2200rpm

5

Total exhaust of cylinder

4.5(L)

6

Compression ratio

18.51

7

Inter-bore of cylinder/stroke

4X102/138(mm)

8

Model of Alternator

Delco Remy 23SI

9

Parameter of alternator

24V/50A

10

Voltage of starting motor

12(V)

11

Model of starting motor

Denso R2.5

12

Max. Torque at specified speed

414N.M@1500rpm

13

Starting type

Electric

14

Min. specific fuel consumption

225(g/Kw.h)

15

Net weight

338Kg

Transmission System

1. Torque Converter

1

Model

CARRARO

2

Cooling type

Pressure oil circulating

2. Transmission case

1

Model

CARRARO

2

Type

Synchromesh mechanical shift

3

Gear shift position

4 Forward and 4 reverse gears

3. Axle and Tire

1

Model

CARRARO

2

Type of main reducer

spiral bevel gear, single stage

3

Type of final reducer

Single stage planetary

4

Max. steering angle

550

5

Grade ability

>30%

6

Max. drawing force

70±10%(kN)

7

Rear tire 19.5L-24R4-12PR

Working Device Hydraulic System

1

Model of oil pump

P257A467PRZA12-6

2

System pressure

215(kgf/cm2)

3

Model of priority valve

WALVOIL SD16/2SD16/6

Steering System

1

Type

Fore wheel Steering

2

Model of steering pump

P257A467PRZA12-6

3

Model of steering gear

150-1219

4

System pressure

140(kgf/cm2)

Oil Capacity

1

Fuel(diesel)

151(L)

2

Engine lubricating oil

11(L)

3

Oil for converter and gear box

18.5(L)

4

Oil for hydraulic system

110(L)

5

Oil for driving axles(F/R)

7.617(L)
