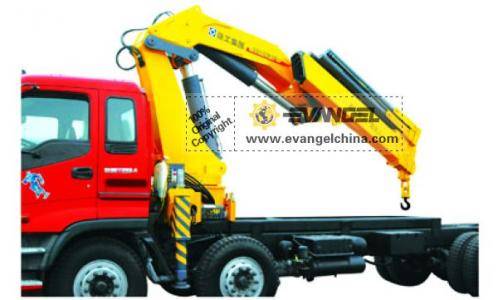

SQ14ZK4Q Truck-Mounted Crane

SQ14ZK4Q Truck-Mounted Crane



Parameter



Max Lifting Moment

35

t.m

Max Lifting Capacity

14000

kg

Recommend Power Needed At Recommend Oil Flow

32

kw

Max Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

26

MPa

Oil Tank Capacity

220

L

Rotation Angle

(360°)All Rotation

Crane Weight

4800

kg

Installation Space

1300

mm

Choice of Chassis

BJ1317VNPJJ-S5福田;NXG1310D3ZEX徐工;

SQ14ZK4Q Lifting capability diagram



Working radius(m)

2.5

4.046

5.826

 7.646

9.516

11.4

Lifting capacity(kg)

140000

 8400

5478

4080

3148

245
