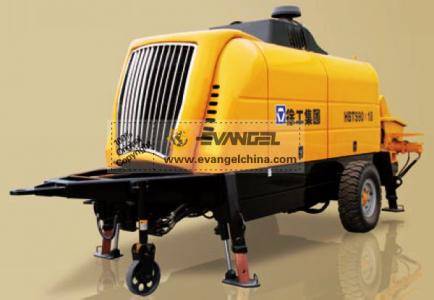

HBTS90X18 Trailer-mounted Concrete Pump


Item

Unit



Model





HBTS90X18

Displacement

Low pressure

m3/h

90

High pressure

m3/h

50

transmission pressure

Low pressure

MPa

10

High pressure

MPa

18

S valve change number

Low pressure

cycle/min.

27

High pressure

cycle/min.

14

Transport cylinder inner diameter × stroke

mm

φ200×1800

Main cylinder inner diameter × stroke

mm

φ150×1800

Valve form



S Valve

Hopper volume

m3

0.65

Products outlet
diameter

mm

φ180

Maximum allow aggregate diameter

mm

40

Engine

Model



6CTAA-C2506CTAA8.3-C260

Engine power

kW/r/min

198/2000196/2000

Hydraulic system

Main system form



Open style

Main pump

ml/r

260

oil tank capacity

L

600

Dimension

L

mm

6960

W

mm

2100

H

mm

2770

Switch form of high and low pressure



Auto

Water tank capacity

L

100

Oil tank capacity

L

210
