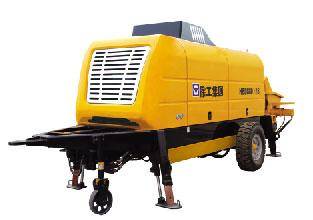

HBDS60×16Trailer-mounted Concrete Pump


Item

Unit



Model





HBDS60×16

Displacement

Low pressure

m3/h

65

High pressure

m3/h

35

transmission pressure

Low pressure

MPa

10

High pressure

MPa

16

S valve change number

Low pressure

cycle/min.

19

High pressure

cycle/min.

10

Transport cylinder inner diameter × stroke

mm

φ200×1800

Main cylinder inner diameter × stroke

mm

φ140×1800

Valve form



S Valve

Hopper volume

m3

0.65

Products outlet
diameter

mm

φ180

Maximum allow aggregate diameter

mm

40

Engine

Model



Y2-315S-4(B35)

Engine power

kW/r/min

110/1480

Hydraulic system

Main system form



Open style

Main pump

ml/r

190

oil tank capacity

L

600

Dimension

L

mm

6960

W

mm

2100

H

mm

2500

Operating weight

 kg

 7373

Switch form of high and low pressure



AUTO

Water tank capacity

L

0.22
