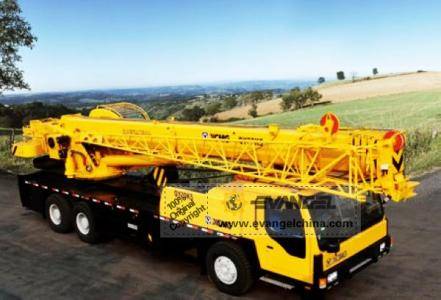

QY30K5 Truck Crane

QY30K5 Truck Crane



QY30K5 truck crane adopts K series mature technique, new materials and technology, effectively improving the product performance and reliability. The application of the innovative techniques, such as variable lifting hydraulic system, new air conditioning, and five-segment octagon big fillet retractable jib, greatly improves the performance and grade of the machine. The modern design and reasonable layout ensure excellent travel and lifting performance.



Parameter



Dimension

Unit

QY30K5

Overall length

mm

12070

Overall width

mm

2500

Overall height

mm

3390

Weight





Total weight in travel

kg

32400

Front axle load

kg

7000

Rear axle load

kg

25400

Power





Engine model



WD615.329 / SC8DK280Q3 (domestic III)

Engine rated power

kW/(r/min)

206/2200
213/2200

Engine rated torque

N.m/(r/min)

1160/1400  1112/1400

Travel





Max. travel speed

km/h

75

Min. turning diameter

m

22

Min. ground clearance

mm

291

Approach angle

°

19

Departure angle

°

13

Max. grade ability

%

30

Fuel consumption for 100km

L

40

Main performance





Max. rated total lifting capacity

t

30

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

1025

Base boom

m

10.1

Fully extended boom

m

38.5

Fully extended boom+ jib

m

46.8

Longitudinal outrigger span

m

5.85

Lateral outrigger span

m

6

Working speed





Boom luffing time

s

68

Boom full extension time

s

150 / 140

Max. swing speed

r/min

≥2.5

Max. speed of main winch (single rope)

m/min

≥ 120

Max. speed of aux. winch (single rope)

m/min

≥ 120
