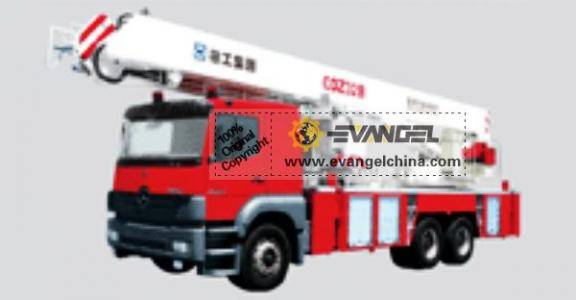

CDZ32B Aerial Platform Fire Truck
CDZ32B Aerial Platform Fire Truck‘s superstructure and carrier are integrated controlled by computer. All movements of the unit can be performed not only automatically but also manually. Multi-functional indication system can dynamically display working data. The functions of automatic recording information like “black box”, indicating troubles and trouble codes are available in the control system. With the functions of leveling, changing the operation of super/lower structure and sensing the working states of the outriggers automatically, the chassis can make the superstructure work safely within various working areas.
Parameter
1、Main Technical Data in Travel Configuration
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
11380 |
|
|
Overall height |
mm |
3900 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel space |
1st, 2nd axle |
mm |
4500 |
|
|
2nd, 3rd axle |
mm |
1350 |
||
|
Track |
Front axle |
mm |
2053 |
|
|
Mid/Rear axle |
mm |
1802 |
||
|
Weight |
Gross weight |
kg |
23950 |
|
|
Axle load |
Front axle |
kg |
6450 |
|
|
Mid/Rear axle |
kg |
17500 |
||
|
Travel parameter |
Chassis |
Benz 2628 |
||
|
Engine model |
MB OM906LA |
|||
|
Power |
kw/(r/min) |
205/2300 |
||
|
Torque |
N·m/(r/min) |
1100/1250～1500 |
||
|
Max. travel speed |
km/h |
≥85 |
||
|
Min. turning diameter |
m |
≤24 |
||
|
Approach angle |
° |
≥16 |
||
|
Departure angle |
° |
≥10 |
||
|
Braking distance(atspeed 30km/h ) |
m |
≤10 |
||
|
Min. ground clearance |
mm |
285 |
||
|
Max. grade ability |
% |
≥25 |
||
2、Main Technical Data for Operation
|
|
||||
|
Category |
Item |
Unit |
Parameter |
|
|
Main performance |
Rated working height |
m |
32 |
|
|
Rated load on the platform |
kg |
400 |
||
|
Max. rated working radius |
m |
19 |
||
|
Telescopic boom length |
m |
10.8～25.7 |
||
|
Folding jib length |
m |
5.5 |
||
