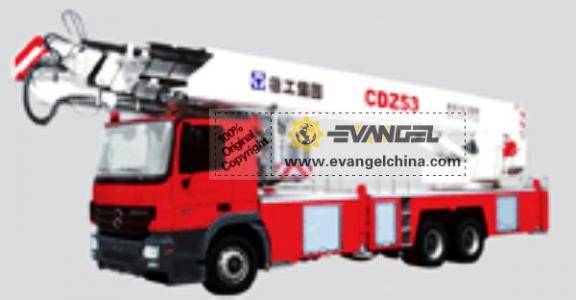

CDZ53 Aerial Platform Fire Truck
CDZ53 Aerial Platform Fire Truck is a multi-functional vehicle of hydraulic drive, full swing with combined 5-section telescopic boom plus 1-section folding jib and a rescue ladder. The superstructure is mounted on a “Benz” 3331/ 6×4 universal chassis. The working cage is articulated at the end of the jib. The water pipeline and rescue ladder fixed along the right side of the telescopic boom expand or contract with the boom simultaneously. H-shaped outriggers, double cylinders for front support elevating and 360º full swing are available. Safety devices are well equipped. Operation of the vehicle can be carried out both on the working cage and on the turntable.
Parameter
1、Main Technical Data in Travel Configuration
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
13430 |
|
|
Overall height |
mm |
3990 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel space |
1st, 2nd axle |
mm |
5200 |
|
|
2nd, 3rd axle |
mm |
1350 |
||
|
Track |
Front axle |
mm |
2035 |
|
|
Mid/Rear axle |
mm |
1804 |
||
|
Weight |
Gross weight |
kg |
33300 |
|
|
Axle load |
Front axle |
kg |
7300 |
|
|
Mid/Rear axle |
kg |
26000 |
||
|
Travel parameter |
Chassis |
Benz 3331 |
||
|
Engine model |
MB OM501LA |
|||
|
Power |
kw/(r/min) |
230/1800 |
||
|
Torque |
N·m/(r/min) |
1530/1080 |
||
|
Max. travel speed |
km/h |
≥85 |
||
|
Min. turning diameter |
m |
≤24 |
||
|
Approach angle |
° |
≥16 |
||
|
Departure angle |
° |
≥10 |
||
|
Braking distance (at speed 30km/h ) |
m |
≤10 |
||
|
Min. ground clearance |
mm |
175 |
||
|
Max. grade-ability |
% |
≥25 |
||
2、Main Technical Data for Operation
|
Category |
Item |
Unit |
Parameter |
|
|
Main performance |
Rated working height |
m |
53 |
|
|
Rated load on the platform |
kg |
400 |
||
|
Max. rated working radius |
m |
17 |
||
|
Telescopic boom length |
m |
12.8～46.8 |
||
|
Folding jib length |
m |
5 |
||
|
Outrigger span (longitudinal×lateral) |
m |
6.45×6.0 |
||
|
Elevating range |
° |
-3～80 |
||
