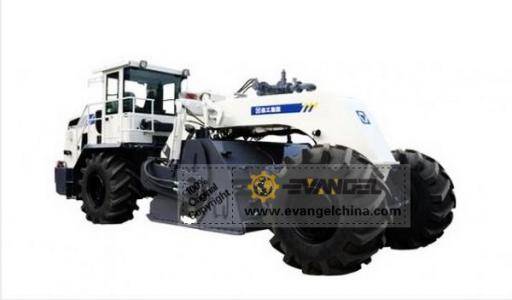

XLZ250 Road Reclaimer

XLZ250 Road Reclaimer(pavement cold recycling machine)


XLZ250 pavement cold recycling machine is a kind of multifunctional road maintenance equipment. It can upgrade the old asphalt pavement and also applicable to the onsite stabilized soil mixing operation for the subgrade and subbase of highways, urban roads, airports, ports, and parking lots.

Features:
• Chongqing Cummins engine, large power and high reliability.
• The load-sensing hydraulic system can set the displacement according to requirements of the executive components; the electro-pneumatic proportional control or the switch control features small pressure loss in the system, convenient operation, stable speed, and reliable performance.
• The double axle drive travel system can provide strong traction force, which can meet the requirements of complicated work conditions.
• The working devices can spray water and emulsified asphalt, and it can make multiple ways of construction.
• The power system adopts automatic power distribution technology, which can allocate the engine power reasonably and effectively, and thus ensures the operating performance.
• The color LCD can display the major parameters of the machine, and it can automatically batch in accordance with the required parameters input according to different construction needs, which achieves the intellectual control of the spraying of water and emulsified asphalt.


Product Model
XLZ250
Max. milling & mixing width
mm
2450
Max. milling & mixing depth
mm
450
Milling & mixing rotor No. of blades
208
Rotor diameter
mm
1530
Engine Model
KTA19-C600
Rated power
kW
448
Rated revs
rpm
2100
Parameters Work speed
m/min
0-2.5
Travel speed
km/h
0-10
Gradeability
≥20%(11,3°)
Ground clearance
mm
400
Work weight
Kg
29000
Capacity Fuel tank
L
800
Hydraulic oil tank
L
350
Water tank
L
600
Working devices
Installed in the middle
Travel system
Tire
Min. turning radius
m
7.5
Dimension (L*W*H)
mm
9963×3231×3539


All technical parameters are subject to change without prior notice because of technical improvements.
