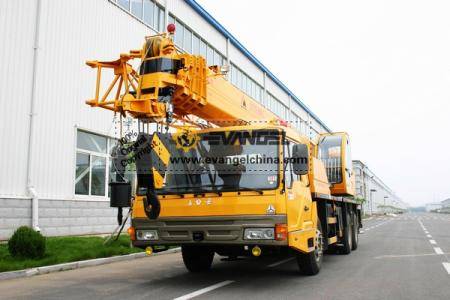

QY16G Truck Crane


KaiFan Brand 16T (WUYUE) Crane Four-section Boom

Technical Parameters

KFM5253JQZ16G – QY16G



Working Condition

1Altitude: 0-4500m

2Temperature: -25℃--+45℃

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree



 Working Range

“KAI FAN” Brand KFM5253JQZ16GQY16GCrane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.



 Main Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

16000

Max. Rated lifting force

Kn.m

588

Max. Height of the basic boom

m

10.4

Max. Height of the main boom

m

31.4

Max. Height of the boom and jib

m

38.8

Max. Speed of the single rope

m/min

120

Working Speed

Extension time of the lifting boom

s

80

Lifting time of the lifting boom

s

53

Turning speed

r/min

02.5

Traveling Parameters

Max. Traveling speed

km/h

75

Max. Grade ability

%

26

Min. Turning radius

m

11

Min. Ground clearance

mm

270

Approaching angle

°

16

Departure angle

°

12

Weight Parameters

Proper weight in traveling mood (the whole weight)

kg

24960

Load of the front axle

kg

6960

Load of the middle-rear axle

kg

18000

The whole weight

kg

24765

Dimension Parameters

External dimensionlength×width×height

mm

12130×2494×3330

Vertical span of outrigger

m

4.9

Horizontal span of outrigger

m

5.6

Length of main boom

m

9.8~30.5

Elevation of main boom

°

-2~80

Length of vice boom

m

7.5

Chassis

Model

TAZ5253J

Engine model

WP6-240

Rated power/speed

kw/r/min

176/2500

Max. Torque/rotate speed

n.m/r/min

800/1300~1600



Standard Equipments

1.  WUYUE TAZ5253J

2.   Main boom assembly

3.   Vice boom assembly

4.   Hanging hook assembly

5.   Windlass assembly

6.   Slewing system

7.    Electric system

8.    Hydraulic system

9.    Outrigger

10.  Superstructure control system

11.  Chassis control system

12.  Tool box
