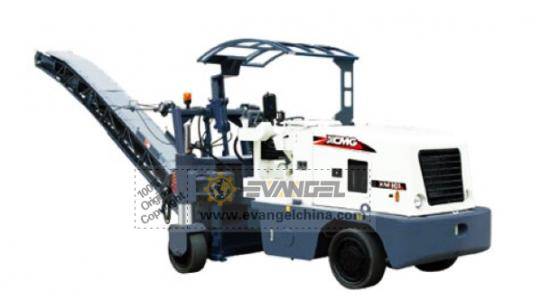

XM101E Cold Milling Machine

  XM101E Cold Milling Machine



XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

⊙Mechanical driving milling drum has the obvious characteristics of stable milling and high efficiency.

⊙The mechanical hydraulic mixing driving moving system has two-gear speed which can be suitable for the requirement of different working conditions and improve the working efficiency .

⊙The high-strength and high wear resistance imported cutter and cutter rest have long service life and low construction cost .

⊙The imported hydraulic elements have high working reliability .

⊙Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.



Model

XM101E

Max. milling with
mm
1020

Max. milling depth
mm
120
Milling wheel
Number of tools

84
Drum diameter with tools
mm
660
Engine
Model

SC8D170G2B1
Rated power
kW
125
Rated speed
rpm
2200
Specifications
Operating speed
m/min
0~13
Travel speed
km/h
0~13
Ground clearance
%
20
Ground clearance
mm
≤120
Operating weight
kg
14500
Volume
Fuel tank
L
210
Hydraulic oil tank
L
160
Water tank
L
360
Conveyor
Width
mm
400
Measurement
Overall machinery LxWxH
mm
4371×2294×3130
Conveyor LxWxH
mm
6428×700×610
Travel mode

Tire



 All technical parameters are subject to change without prior notice because of technical improvements.
