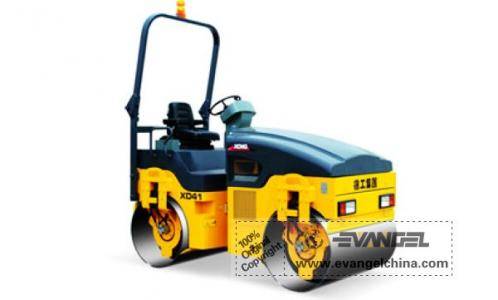

XD41 Light compaction equipment

                                                                     XD41 Light compaction equipment



Feature

XD41 vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.


·It adopts the articulated frame, featuring flexible steering and excellent stability.


·It adopts hydraulic drive, vibration and steering, featuring high reliability.


·The front and rear wheels are equipped with mud-scrapper and watering device.


·The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.



Parameter





Model

Unit

XD41

operating weight

kg

4000

static linear load(front/rear)

N/cm

154/154

speed

km/h

0-10

gradeability in theory

%

30

min. turning radius (L/R)

mm

2900/4200

min. ground clearance

mm

240

wheel base

mm

1900

steering angle

±°

30

swing angle

±°

10

vibration frequency

Hz

60

vibrating system-max. pressure

Mpa

18

steering system-max. pressure

Mpa

16

nominal amplitude

mm

0.4

centrifugal force

kN

40

compacting width

mm

1200

drum diameter

mm

800

engine model



Detuz F3L2011

rated engine speed

r/min

2600

rated engine power

kw

33.9

overall dimensions(length/width/height)

mm

2865/1300/2937

rated oil wear

g/kW.h

218

hydraulic tank capacity

L

67

fuel tank capacity

L

80

water tank capacity

L

150



         All technical parameters are subject to change without prior notice because of technical improvements.
