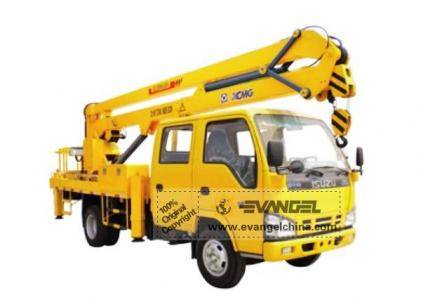

XZJ5068JGK Aerial Work Platform

XZJ5068JGK Aerial Work Platform



Feature



Originally imported Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle.
• Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.
• The turntable and work platform can work together, and both the operation can achieve remote control of the engine.
• The internally mounted leveling system ensures that the work platform always keeps level.
• The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability.
• There is elevation angle limit device for the upper arm, which can avoid danger.
• The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.
• When the horizontal outriggers are not extended,  the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.

• The emergency pump is available.
• The electronic timer can add up the work time for timely maintenance.
• The imported key parts has high reliability, good performance and long service life.
• The synchronic telescopic arm structure has high work efficiency and wide work range.
• The multifunction integrated handle is very convenient, smooth and comfortable to operate.
• The PLC control has superior safety performance like automatic amplitude limit and danger alarm function.
• The special energy-saving design ensures that the engine is automatically adjusted to ideal speed during engine idling.
• The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.

• The large outrigger span features good stability, and the outriggers can be operated simultaneously or independently, which can be applicable to various kinds of work conditions.
• The emergency power unit can effectively cope with unexpected failures.
• The work platform is mounted at the rear part, which is convenient to enter or exit the cab; and it also reduces the gravity of the whole machine and improves travel performance.
• The work platform can slewing ±90°, which is convenient for the aerial work.
• Convenient one button extension/withdrawal function



Parameter



Vehicle Model

XZJ5068JGK

Max Operating Height

18.3m

Max Operating Radius

8.7m

Rated Load of Platform

200Kg

Slewing Angle

±360°

Max Operating Radius at Maximum Operating Height

2.8m

Max Operating Height at Maximum Operating Radius

10.2m

Max Lifting Capacity

2000Kg

Max Lifting Height

9.7m

Dimension in Driving( L × W × H)

8800×2000×3050(mm)

Chassis Model

NKR77PLLWCJAY

Engine Model

4KH1-TC

Engine Power

96kw

Passengers

2+3
